GRAU CONCRETE PLACING BOOMS
Working with concrete is just as important as manufacturing it. Keeping that in mind, Grau Technic Ltd has partnered with one of the leading companies in the sector to deliver Concrete Placing Booms as add-on packages to standard Concrete Batching Plant product lines. This partnership helps our customers with setting up on-site concrete production and distribution through one single company. We take away all the hassle and deliver flawless operation while our customers focus on their business.
CONCRETE PLACING BOOM MODIFICATIONS
- Spider Concrete Placing Booms: An easy-to-move option which doesn’t require any foundation work. Can also be used with a mast.
- Self-Climbing Concrete Placing Booms: A perfect solution which climbs up with each building store you construct with a help of a hydraulic system.
- Telescopic Spider Concrete Placing Booms: Thanks to its telescopic hydraulic lifting system this placing boom can be installed in the narrowest areas.
- Track-Mounted Spider Concrete Placing Booms: Well, this thing can crawl around the site where you need it to be.
- Cobra Concrete Placers: This little fellow can easily get into tight spaces, can be easily moved around the site and is perfect for concrete spreading.
Why GRAU CONCRETE PLACING BOOMS?
-
01 HIGH-QUALITY -
02 EASY TRANSPORT -
03 FAST INSTALLATION
-

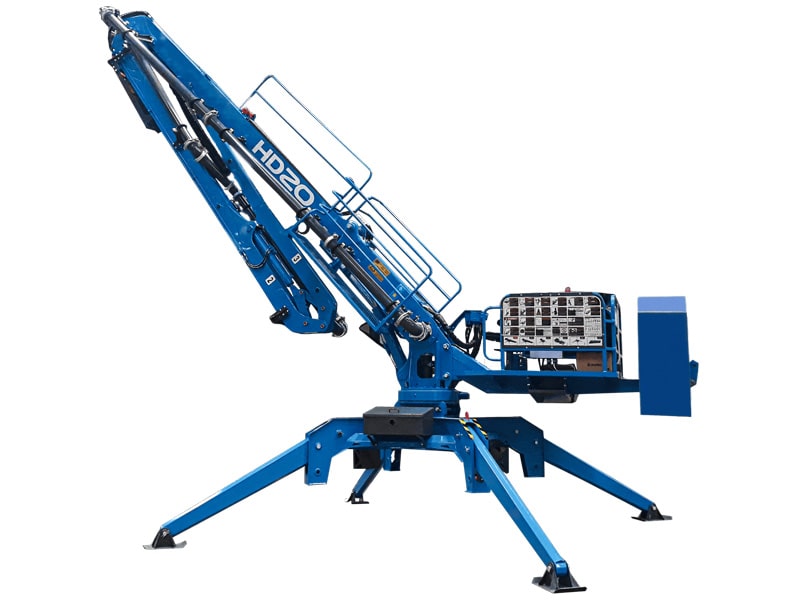

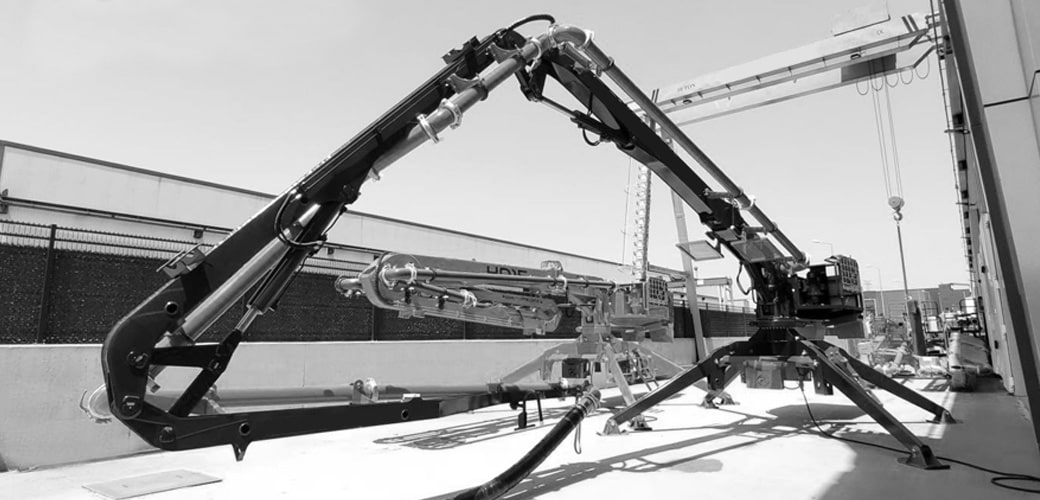

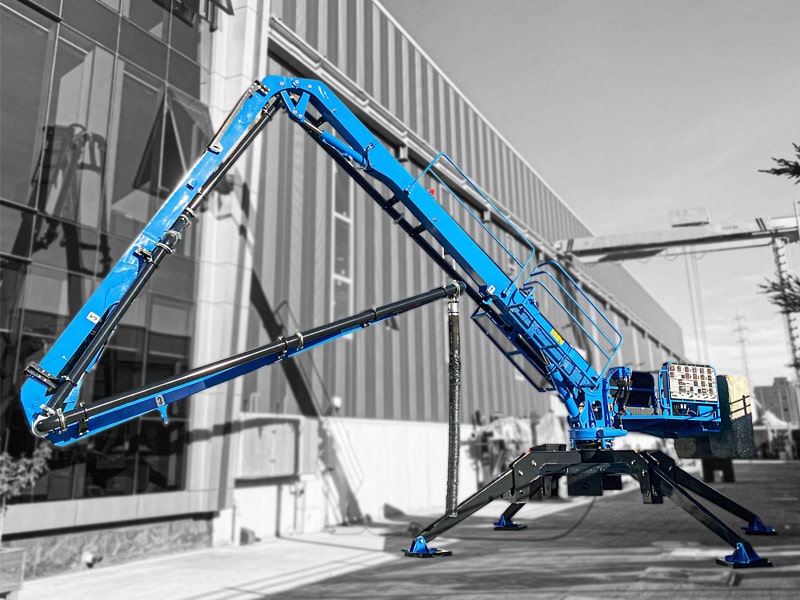

Spider Concrete Placing Booms Spider Concrete Placing Boom is one of the most common types of concrete pouring and distribution systems. They are a perfect solution for pouring columns, shear walls and slab concrete. We offer 4 different types:
Hydraulic: All round solution with 2-3 hydraulic booms with horizontal reach up to 23 meters.
Hydro-mechanical: A cost-effective solution for places where mobile pumps can’t be used. Offers a horizontal reach up to 14 meters.
Mechanical: An economical one-piece concrete placer for tunnel works or slabs with horizontal reach up to 14 meters.
Mechanical Tower: A mechanical spider placing boom installed on a vertical steel beam for increase vertical height. Offers a horizontal reach up to 14 meters.
-

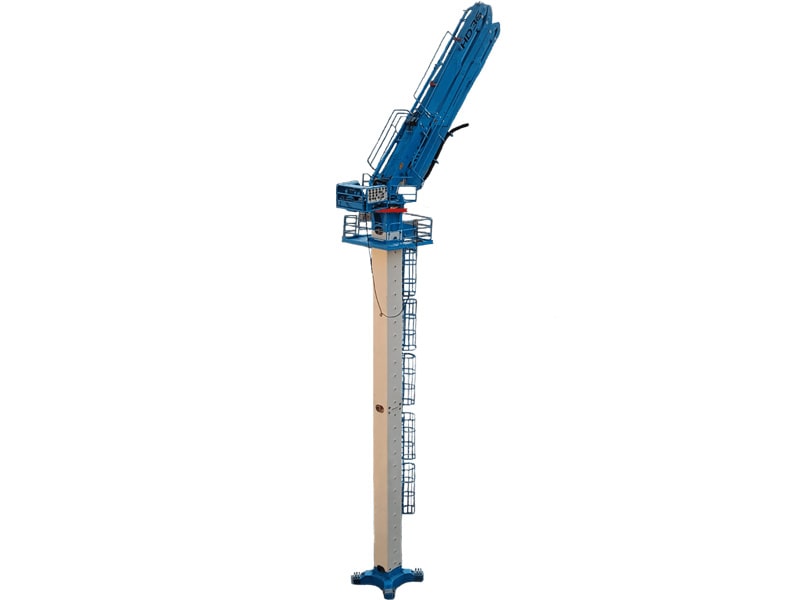

Self-Climbing Concrete Placing Booms Self-Climbing Concrete Placing Booms are the best choice for tall buildings and large construction sites and can reach 24, 32 and 36 meters with their 3-4 booms with ZR opening systems. As the building becomes higher, the hydraulic system on a hydraulic mast raises the machine up which eliminates the need for disassembling and additional crane operation and installation.
-

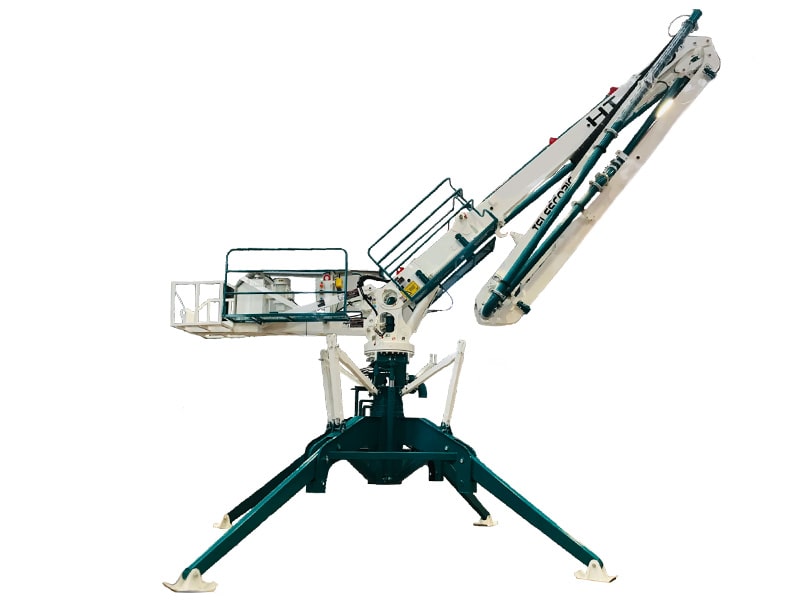

Telescopic Spider Concrete Placing Booms Telescopic Spider Concrete Placing Booms are equipped with telescopic hydraulic mast that can lift the machine up by a few meters. This allows installation in very tight areas as higher positioning allows for operating over the wall formworks. The horizontal reach for these machines is 15, 18 and 20 meters. -

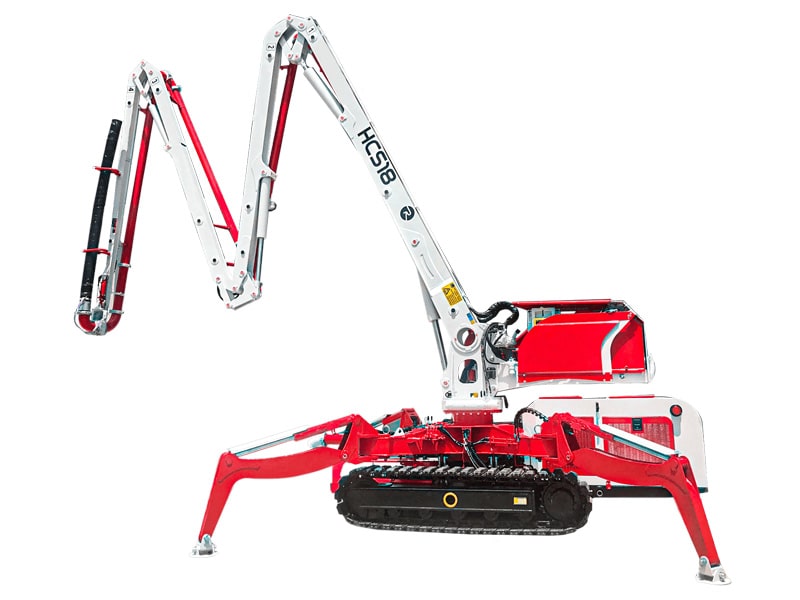

Track-Mounted Spider Concrete Placing Booms A sophisticated design which allows the spider boom to move around the site on a tracked base. It works well where the mobile concrete pumps can’t enter or can’t reach or any other applications with space and height restrictions.
-

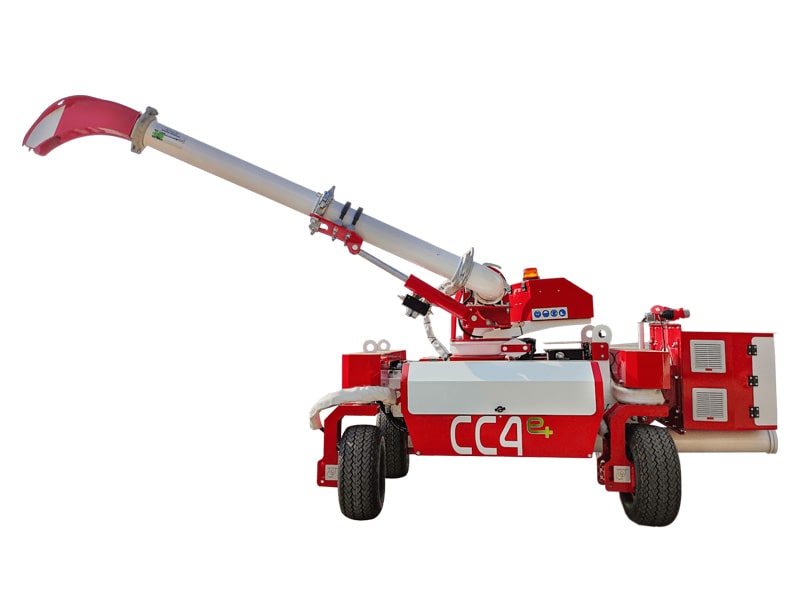

Cobra Concrete Places This is a lightweight and practical solution for pouring concrete slabs and walls in tight spaces. The system is installed on a wheeled base which is powered by either a petrol engine or an electric motor.
PRODUCT HIGHLIGHTS
SPECIFICATION
|
SPIDER CONCRETE PLACING BOOMS |
||||||
|
Type |
Hydraulic |
Hydro-Mechanical |
Mechanical |
Mechanical Tower |
||
|
Model |
HD12 |
HD15 |
HD20 |
HM14 |
M14 |
MK14 |
| Horizontal Reach | 12 m | 15 m | 20 m | 15m | 14 m | 14 m |
| Vertical Reach | 14 m | 18 m | 22 m | 5 m | 1.3 m | 5 m |
| Working Area | 600 m² | 710 m² | 1200 m² | 600 m² | 530 m² | 615 m² |
| Machine Weight | 2200 kg / 4850 lbs | 2900 kg / 6400 lbs | 4000 kg / 8800 lbs | 2200 kg / 4850 lbs | 1300 kg / 2870 lbs | 2000 kg / 4400 lbs |
| Counterweight | 1300 kg / 2870 lbs | 1800 kg / 4000 lbs | 2300 kg / 5000 lbs | 1200 kg / 2650 lbs | 1200 kg / 2650 lbs | 1500 kg / 3300 lbs |
| Total Weight | 3500 kg / 7720 lbs | 4700 kg / 10300 lbs | 6300 kg / 13900 lbs | 3400 kg / 7495 lbs | 2500 kg / 5520 lbs | 3500 kg / 7700 lbs |
| End Hose Length | 3 m | 3 m | 3 m | 3 m | - | - |
| Power / Voltage | 5.5 kW, 400-480 V | 7.5 kW, 400-480 V | 7.5 kW, 400-480 V | 5.5 kW, 400-480 V | - | - |
| SELF-CLIMBING CONCRETE PLACING BOOMS | |||
| Model | HD24 | HD32 | bHD36 |
| Horizontal Reach | 24 m | 32 m | 36 m |
| Vertical Reach | 26 m | 34 m | 38 m |
| Working Area | 1800 m² | 3215 m² | 4069 m² |
| Total Weight | 9500 kg / 20900 lbs | 14300 kg / 31500 lbs | 15700 kg / 34540 lbs |
| End Hose Length | 3 m | 4 m | 4 m |
| Power / Voltage | 15 kW, 400-480 V | 18.5 kW, 400-480 V | 18.5 kW, 400-480 V |
| TRACK-MOUNTED SPIDER CONCRETE PLACING BOOMS | |||||
| Model | HMC12 | HC 15-12 | HC 18-15 | HC 22-18 | HCS 22-18 |
| Horizontal Reach | 12 m | 12 m | 15 m | 18m | 18m |
| Vertical Reach | 5.5 m | 15 m | 18 m | 22 m | 22 m |
| Working Area | 452 m² | 452 m² | 706 m² | 1017 m² | 1017 m² |
| Machine Weight | 3050 kg / 6650 lbs | 3050 kg / 6650 lbs | 4250 kg / 9370 lbs | - | 8400 kg / 18500 lbs |
| Counterweight | 750 kg / 1650 lbs | 750 kg / 1650 lbs | 1300 kg / 2860 lbs | - | 1600 kg / 3530 lbs |
| Total Weight | 3800 kg / 8300 lbs | 3800 kg / 8300 lbs | 5550 kg / 12230 lbs | 8400 kg / 18450 lbs | 10000 kg / 22030 lbs |
| End Hose Length | 2 m | 3 m | 3 m | 4 m | 4 m |
| Power / Voltage | 7.5 kW, 400-480 V | 7.5 kW, 400-480 V | 7.5 kW, 400-480 V | - | 7.5 kW, 400-480 V |
| Engine Power | 36 hp | 36 hp | 36 hp | 74 hp | 74 hp |
| TELESCOPIC CONCRETE PLACING BOOMS | |
| Model | HD20 |
| Horizontal Reach | 20 m |
| Vertical Reach | 25 m |
| Working Area | 1250 m² |
| Machine Weight | 4350 kg / 9600 lbs |
| Counterweight | 2500 kg / 5500 lbs |
| Total Weight | 6850 kg / 15100 lbs |
| End Hose Length | 3 m |
| Power / Voltage | 7.5 kW, 400-480 V |
GALLERY
Contact Us
GRAU Technic team is here to listen to your comments and suggestions.
Rest assured with GRAU's commitment to quality and customer satisfaction. With every GRAU product our customers get a comprehensive 12-month warranty against manufacturing defects. When you invest in a GRAU plant, you're not just purchasing equipment; you're investing in quality, knowledge, and experience. Our team of experts stands by our customers every step of the way, ensuring seamless operation and maximum productivity. Experience peace of mind knowing that GRAU is dedicated to delivering top-notch products and exceptional service. Our service team is always on hand to assist you, providing timely support and expertise whenever you need it. Choose GRAU for reliability, performance, and unparalleled customer service. Elevate your operations with confidence, backed by GRAU's unwavering Passion to do Better.
