COMPACT CONCRETE PLANTS

GRAU Compact Concrete Plants have been designed for easy transport and fast installation. Due to their modular structure they are easier to move and install. They are ideal for on-site concrete production with capacities up to 120 m³/h as they can be deployed on smaller footprints.
/ PRODUCTS / CONCRETE BATCHING PLANTS / COMPACT CONCRETE PLANTS

COMPACT CONCRETE PLANTS

GRAU COMPACT CONCRETE PLANTS

MODULAR AND CONTAINERIZED

GRAU Compact Concrete Plants are easy to transport and set up. Most of the compact plant elements are foldable and pre-installed or pre-wired and tested at the factory. Our smart design makes them robust, reliable, and easy to maintain.



SMALL FOOTPRINT AND FAST INSTALLATION

GRAU Compact Concrete Plants require less space compared to stationary models. Their modular design allows for installation in blocks which makes the process significantly faster.

Why GRAU COMPACT CONCRETE PLANTS?
  • 01
    MODULAR
  • 02
    RELIABLE
  • 03
    FAST INSTALLATION

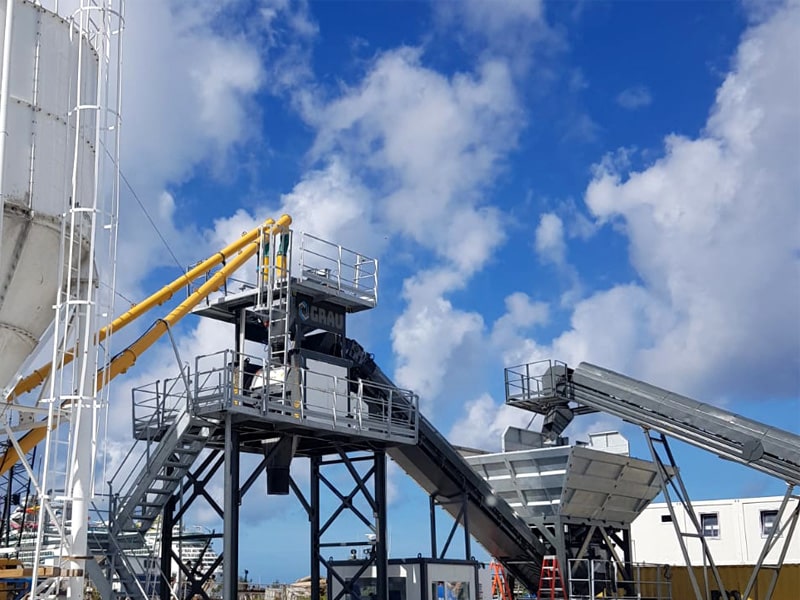

  • grau-compact-concrete-plant1
    Easy Installation and Fast Relocation
    GRAU Compact Concrete Plants are easy to install and relocate. They are suitable for temporary and distant work sites where the plant needs to be moved after the project has been completed. Our engineering team will help you choose the most suitable plant design for your needs.
    GET A QUOTE
  • Fully Galvanized
    Optionally, some Grau Compact Concrete Plants can be fully galvanized for longevity. Galvanization process provides a much better protection against rust compared to painting. It will make sure your plant looks as new even after many years of operation.
    GET A QUOTE

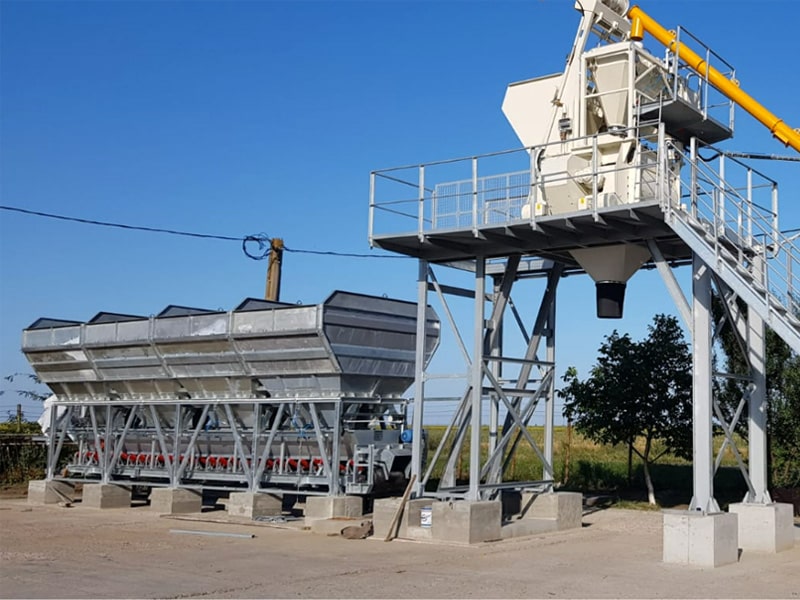

    grau-compact-concrete-plant2

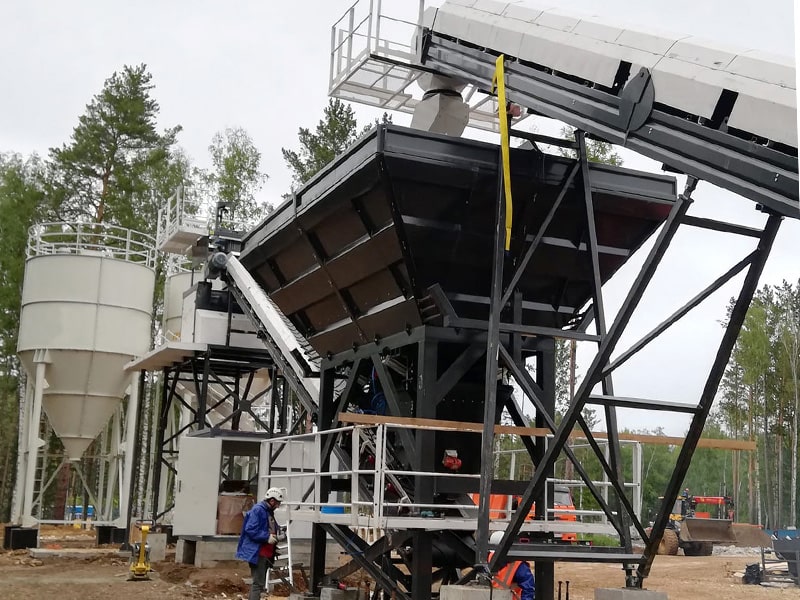

  • grau-compact-concrete-plant3
    Why choose our compact concrete plants?
    Cost-Effective Investment: Our smart design combined with staged manufacturing process makes our compact concrete plants very cost-effective. Grau Compact Concrete Plants will give you a greater and faster return on your investment.

    Easy Installation and Fast Relocation: Grau Compact Concrete Plants are easy to transport, install and relocate. Keeping in mind that these plants will be moved frequently, we design the compact plants for maximum longevity and lifetime.

    Ease of Access and Service: Any concrete plant needs to be easily maintained for many years to come. Our design team always allow for proper access and servicing of the plant to ensure it is easy to maintain and your people work safely.
    GET A QUOTE
PRODUCT HIGHLIGHTS
From 30 to 120 m³/h
GRAU Compact Concrete Plant capacities vary from 30 to 120 m³/h.
GET A QUOTE
Features and Options
Optional Galvanization
  • Galvanized Steel Structure
    Galvanized Steel Structure
    Optionally, some Grau Compact Concrete Plants can be fully galvanized for longevity. Galvanization process provides a much better protection against rust compared to painting. It will make sure your plant looks as new even after many years of operation.
    Contact Us
Improved Safety

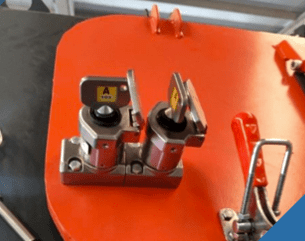

  • STI Safety Locks on Maintenance Doors are Standard
    STI Safety Locks on Maintenance Doors are Standard
    All GRAU Concrete Mixers are equipped with STI Safety Locks. The operator can not open the mixer maintenance door without cutting off the main power and removing the key from the control cabinet. It provides a much better safety control for your personnel.
    Contact Us
SPECIFICATION
Technical Specification G30C G60C G110C G135C
Theoretical output / compacted mixed concrete 30 m³/h 60 m³/h 100 m³/h 120 m³/h
Mixer type Planetary, Singleshaft Single Shaft, Twin Shaft, Planetary Twinshaft Twinshaft
Mixer size 0,5 m³ 1,0 m³ 2,0 m³ 3,0 m³
Aggregate Transfer Skip or Conveyor Skip or Conveyor Skip or Conveyor Conveyor
Cement weighing bin 300 kg 600 kg 1000 kg 1500 kg
Water weighing bin 300 kg 300 kg 750 kg 750 kg
Additive weighing bin 20 kg 20 kg 20-50 kg 20-50 kg
Maximum number of aggregate bins 4 6 8 8
Maximum capacity of each aggregate bin storage 20 m³ 30 m³ 40 m³ 40 m³
Total electrical power* 50 kW 125 kW 175 kW 205 kW



Contact Us
GRAU Technic team is here to listen to your comments and suggestions.

We got you covered
Rest assured with GRAU's commitment to quality and customer satisfaction. With every GRAU product our customers get a comprehensive 12-month warranty against manufacturing defects. When you invest in a GRAU plant, you're not just purchasing equipment; you're investing in quality, knowledge, and experience. Our team of experts stands by our customers every step of the way, ensuring seamless operation and maximum productivity. Experience peace of mind knowing that GRAU is dedicated to delivering top-notch products and exceptional service. Our service team is always on hand to assist you, providing timely support and expertise whenever you need it. Choose GRAU for reliability, performance, and unparalleled customer service. Elevate your operations with confidence, backed by GRAU's unwavering Passion to do Better.
