Standard: Perfect for small to medium size solid particles. Very efficient and durable.
Semi-open: Can handle large to medium size solid particles. Very efficient with larger aggregates.
Vortex: Perfect solution for pumping fluids with large solid particles. Offer increased lifetime yet is less efficient.
/
PRODUCTS
/
EQUIPMENT & COMPONENTS
/
SLURRY PUMPS
SLURRY PUMPS
GRAU SLURRY PUMPS
GRAU Slurry Pumps have been developed for efficient pumping of slurries, viscous, corrosive, and abrasive liquids with high percentage of solids or fibrous particles. Depending on particle amount pumping capacity can reach up to 3,500 m³/h. Our pumps can also withstand high temperatures of up to +110 °C.
DESIGN FEATURES
Our heavy-duty slurry pumps are wear-resistant and offer high hydraulic efficiency. The extra heavy-duty grease lubricated, or oil lubricated bearing design makes them highly reliable in a variety of applications. In addition, continuous supply of cost-effective spare parts makes these pumps easy to service and maintain, thus prolonging their service life.
SLURRY PUMP APPLICATION AREAS
- Mining and mineral processing
- Sand and gravel processing plants
- Abrasive slurry transfer
- Industrial plants
- Pulp and paper industry
- Cyclone feed for dewatering screens
- Mine wastes transfer
- Fly ash and bottom ash transport
- Manure transfer
- Lime mud transport
- Wastewater systems
- Chemical slurries
Why GRAU SLURRY PUMPS?
-
01 HIGH QUALITY -
02 HIGH RELIABILITY -
03 ULTRA DURABLE
-

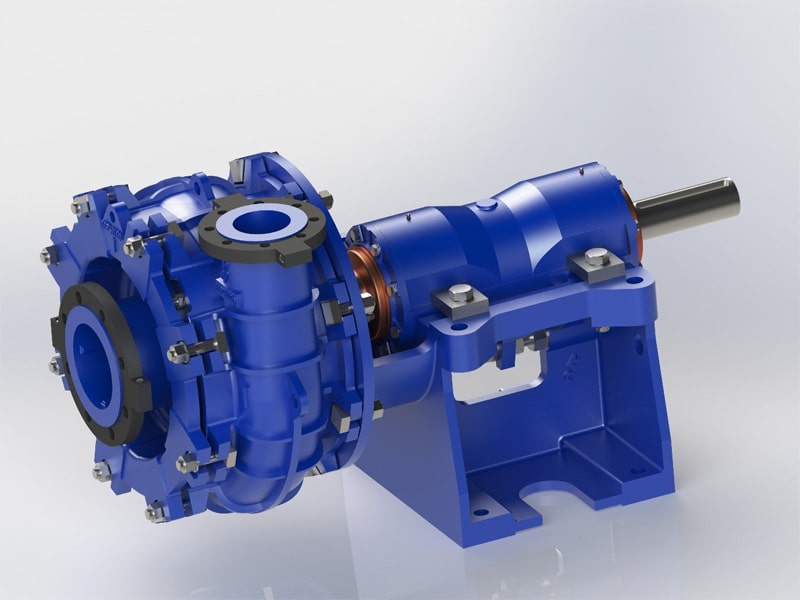

GRAU SSP-H HC - Full Body Casting Heavy Duty Slurry Pumps SSP-H series HC type Slurry Pumps are single-stage centrifugal pumps with horizontal shaft, volute casing and closed impeller with adjustable clearance. These pumps feature a replaceable cast casing which makes them very versatile and durable. Semi-open or vertex impeller can be used depending on the application. -

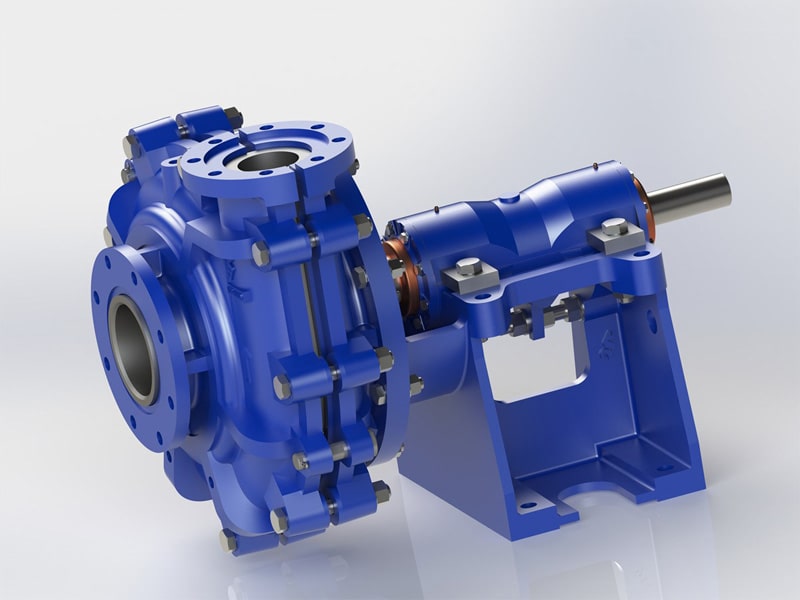

GRAU SSP-H CHC – Heavy Duty Slurry Pumps with Metal Liner SSP-H series CHC type Slurry Pumps are single-stage centrifugal pumps with horizontal shaft, closed impeller with adjustable clearance and volute casing which contains a replaceable metal liner. Metal liner can offer great flexibility in applications and material selection. It is durable and easily serviceable. Semi-open, vertex or, optionally, rubber impeller can be used depending on the application.
-

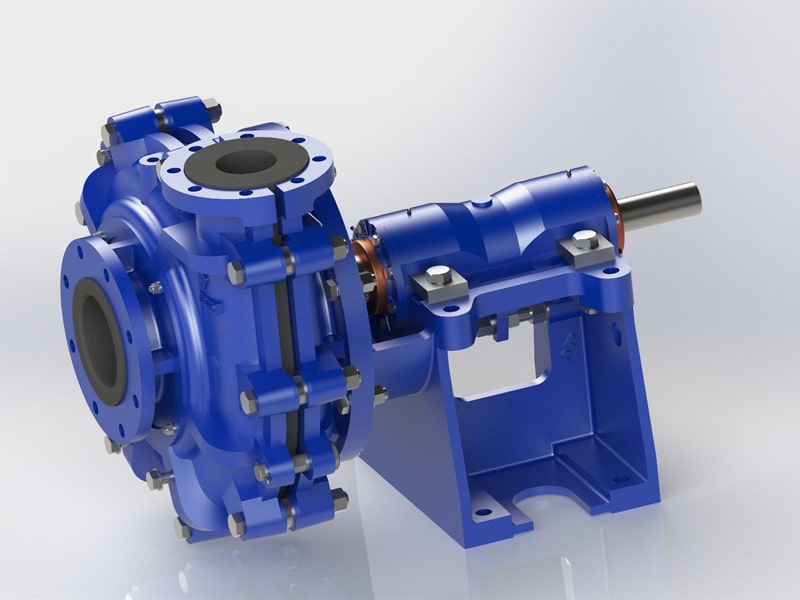

GRAU SSP-H CR – Heavy Duty Slurry Pumps with Rubber Liner SSP-H series CR type Slurry Pumps are single-stage centrifugal pumps with horizontal shaft, closed impeller with adjustable clearance and volute casing which contains a replaceable rubber liner. Rubber liners are one of the most suitable options for fine aggregate pumping applications due to their high energy absorption and particle rebound properties. Cast steel impeller can be used depending on the application.
PRODUCT HIGHLIGHTS
Features and Options

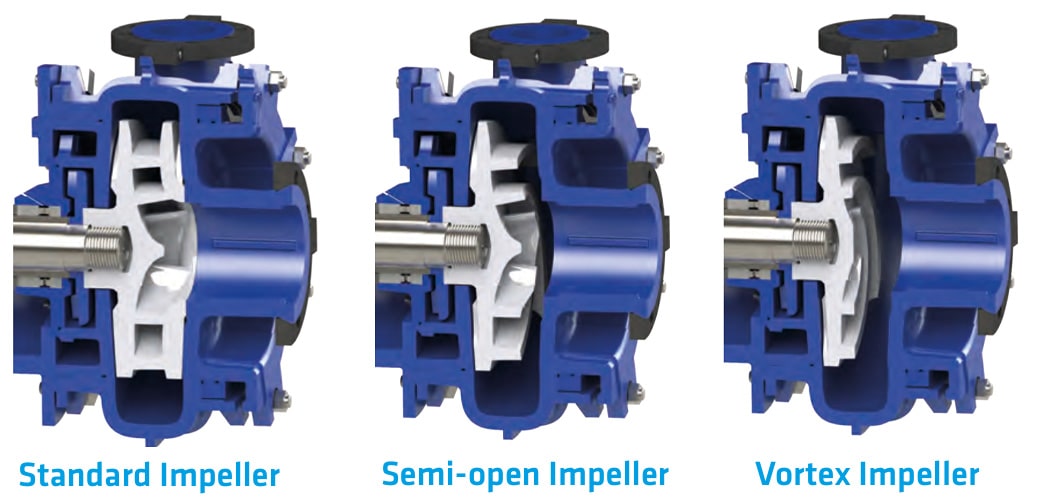

Standard, Semi-Open or Vortex Impeller

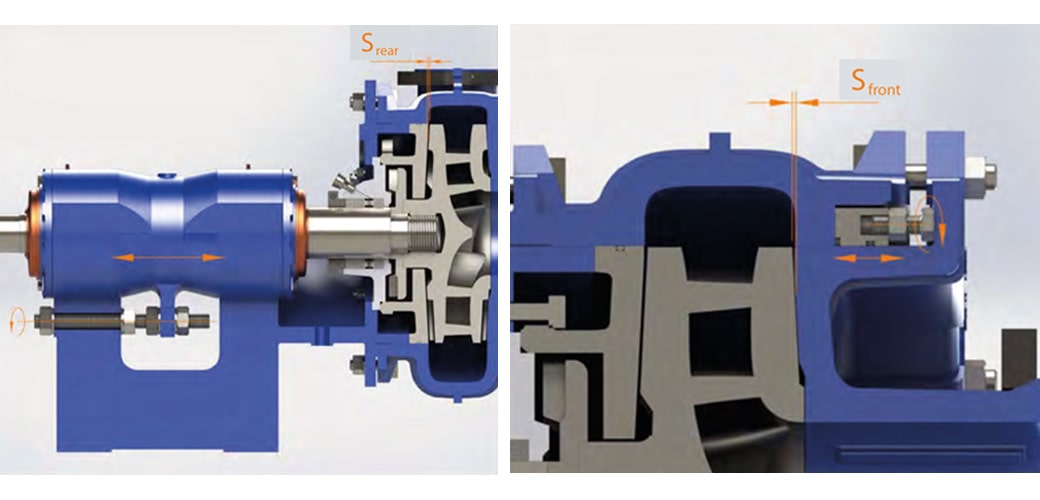

Impeller Clearance Adjustment
-
Rear End: Stud bolts on the bearing housing move the cartridge housing improving the efficiency when wear takes place.
Front End: Stop bolts in front of the volute casing set the gap between the inlet port and impeller.
