JAW CRUSHERS

GRAU Jaw Crushers can process all kinds of materials, from soft sedimentary rock to hardest granite or basalt. High quality materials combined with excellent design provide long service life in heavy-duty applications.

JAW CRUSHERS

GRAU JAW CRUSHERS

A perfect all-round versatile machine capable of crushing all kinds of materials, from soft sedimentary rock to hardest granite or basalt. Excellent design provides long service life even in the most challenging applications.



WHAT IS A JAW CRUSHER?

Jaw Crusher is a type of rock processing machine that breaks rocks by compressing them between two plates, called jaws. One of the jaws is fixed to the crusher body and the other jaw is moving. You can mostly see Jaw Crushers in primary crushing stages as they perform very well at reducing the size of large, hard and abrasive material lumps into easier to process pieces, but secondary jaw crushers are also fairly common.



JAW CRUSHER ADVANTAGES

  • Efficiency: Jaw Crushers are very efficient at reducing the size of even the hardest material.
  • Versatility: Jaw Crushers can handle a wide variety of materials, ranging from soft sedimentary rocks or RAP (Reclaimed Asphalt Pavement) to the hardest granite and basalts.
  • Low Wear: Jaw Crushers show less wear compared to impact crushers.
  • Low Fines: Jaw Crushers produce very low amount of fines and dust.
Why GRAU JAW CRUSHERS?
  • 01
    RELIABLE
  • 02
    HIGH FLYWHEEL SPEEDS
  • 03
    HYDRAULIC CSS ADJUSTMENT

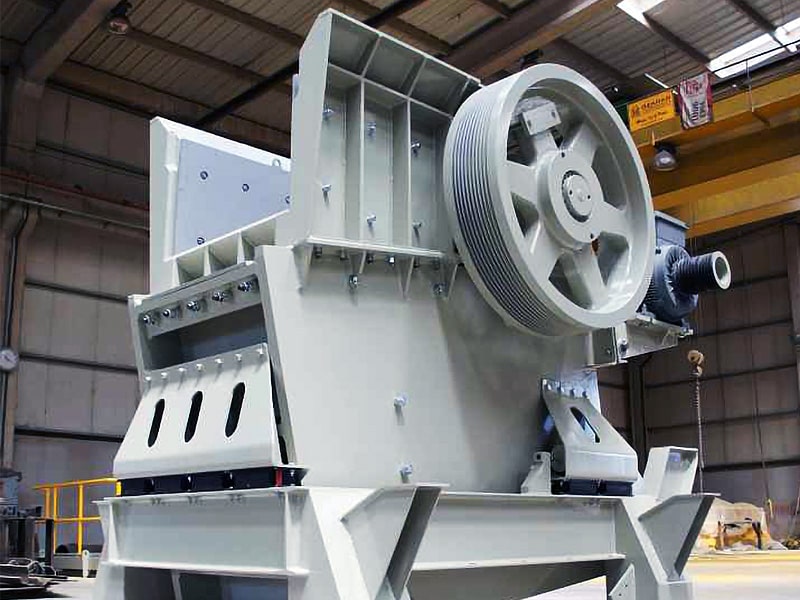

  • grau-jaw-crusher-2
    Unique Operational Advantages
    GRAU Jaw Crushers come with many operational advantages. Jaw grabbing angle provides more efficient crushing, high flywheel speeds increase the momentum and crushing force while easy to operate adjustment systems allow for easier operation and maintenance.

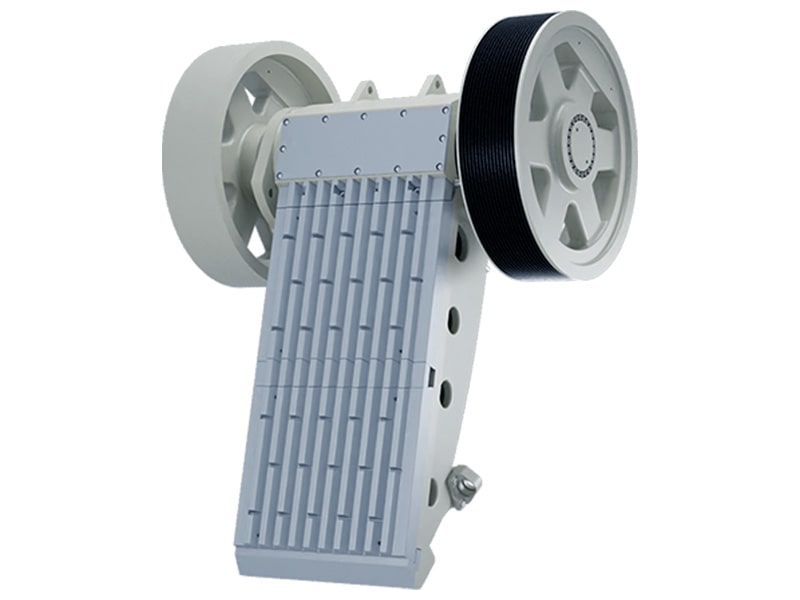

  • Interchangeable Jaw Plates
    Upper and lower jaw plates are interchangeable while the top of the pitman is protected with a removable plate. Rear surfaces of the jaw plate seats are protected by lead sheets which reduce the surface imperfections and prevent the jaws from damage and premature breaking.
    grau-jaw-pitman

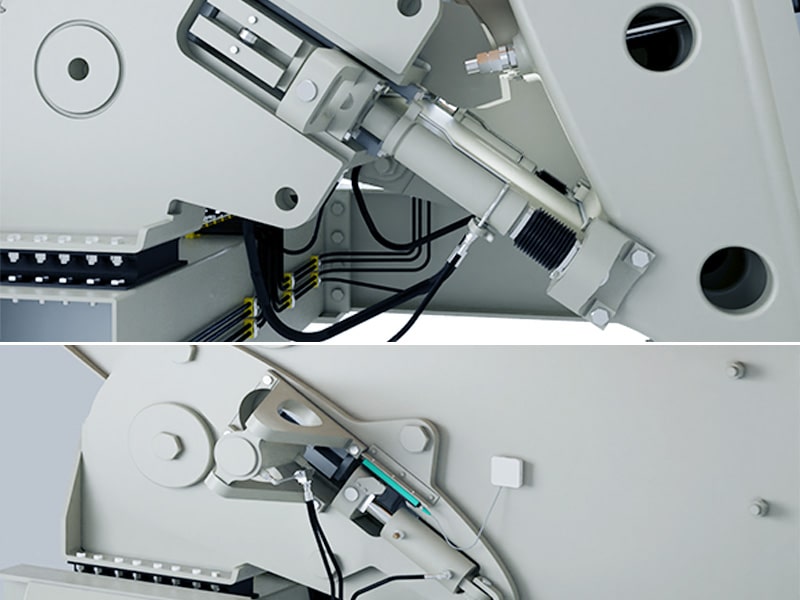

  • grau-jaw-crusher-hydraulic-adjustment
    Hydraulically Assisted CSS Adjustment
    All GRAU Jaw Crushers are equipped with Hydraulically Assisted CSS Adjustment Mechanism. It is very easy to change the CSS on the go, depending on your requirements.
PRODUCT HIGHLIGHTS

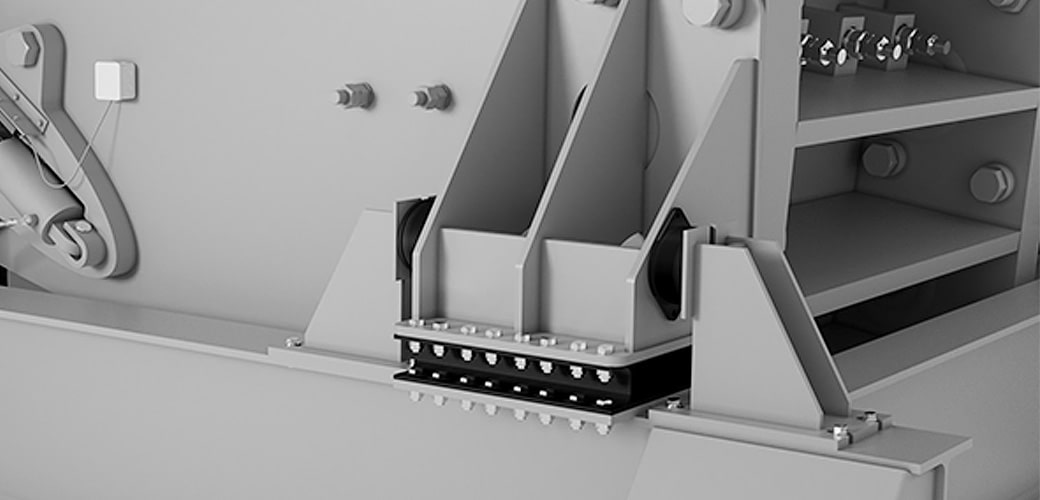

Larger Models are Equipped with Buffers
Larger models of GRAU Jaw Crushers operate on rubber buffers that minimize the vibrations on the chassis both horizontally and vertically.

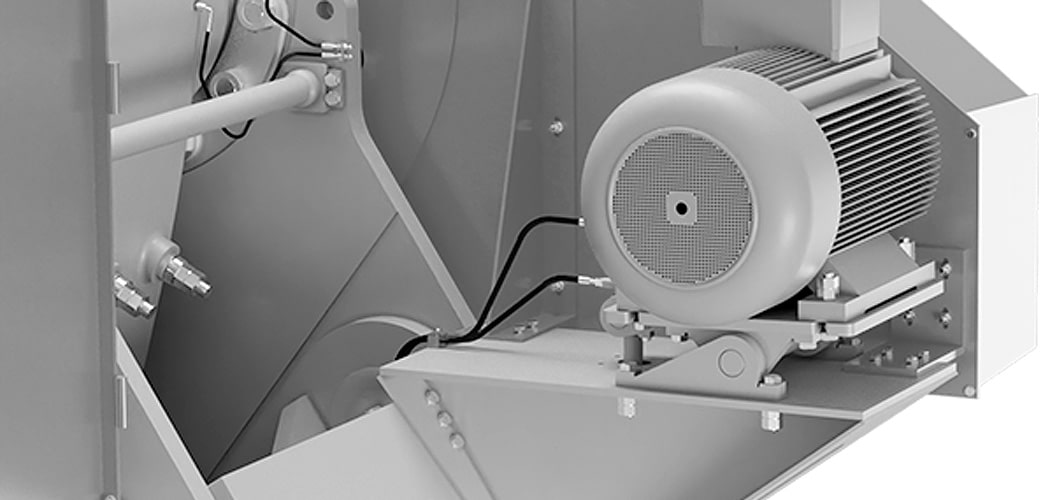

Hydraulic Self-Adjusting Motor Base
This system automatically adjusts the belt tension that may have changed in different weather condition and ambient temperatures.
SPECIFICATION
  GSJ 15 GSJ 30 GPJ 40 GPJ 61 GSJ 90 GPJ 90 GPJ 110 GSJ 110 GPJ 140
Feed Opening mm 150 x 100 300 x 150 400 x 250 610 x 380 900 x 250 900 x 650 1100 x 900 1100 x 350 1400 x 1100
Feed Opening inch 6"-4" 12"-6" 16" x 10" 24" x 15" 36" x 26" 36" x 26" 43" x 35" 43" x 14" 55" x 43"
Motor Power 4 kW 7,5 kW 15 kW 30 kW 30 kW 90 kW 132 kW 55 kW 200 kW
Motor Power 5 hp 10 hp 20 hp 40hp 40 hp 125 hp 180 hp 75 hp 270 hp
Flywheel rpm 360 rpm 430 rpm 325 rpm 300 rpm 300 rpm 270 rpm 225 rpm 270 rpm 225 rpm
Motor Rpm 1450 1450 1450 1450 1450 1450 1450 1450 1450
Max Feed Size mm 100 x 100 150 x 150 250 x 250 350 x 350 250 x 250 600 x 600 850 x 850 300 x 300 1000 x 1000
Max Feed Size inch 4" x 5" 6" x 6" 10" x 10" 14" x 14" 10" x 10" 24" x 24" 34" x 43" 12" x 12" 39" x 39"
Total Weight kg 500 1300 2600 6000 5600 12000 28000 9500 51500
Total Weight lbs 1100 29000 5750 23250 12350 26500 61750 21000 113500
