FINE MATERIAL WASHERS

Fine material washers offer a cos-effective solution for washing, classifying and dewatering minus 10mm (-3/8”) sand and other fine material with specific gravity of around 2.5. The augers produce clean product and are easy to maintain.

FINE MATERIAL WASHERS

GRAU FINE MATERIAL WASHERS

WHAT IS A FINE MATERIAL WASHER?

Fine Material Washer is a special type of sand washing equipment that consists of an inclined screw conveyor with a large basin at the bottom of it. Fine Material Washers are primarily used to remove excessive unwanted material from sand, such as dust, clay or silt that are nominally minus 200 mesh (75 µm). These particles are removed with water, while clean material gets conveyed towards the discharge end.



HOW DO FINE MATERIAL WASHERS WORK?

The sand and wash water from the washing screen gets discharged into the Fine Material Washer basin. Clay and silt get suspended in the water, while the screw slowly pulls the heavier sand particles up towards the discharge end. With some scrubbing effect and sometimes additional spray bars on top of the shafts it is possible to get clean fine material up to 10mm.



Why GRAU FINE MATERIAL WASHERS?
  • 01
    ECONOMICAL SOLUTION
  • 02
    RELIABLE
  • 03
    EASY ACCESS & MAINTENANCE

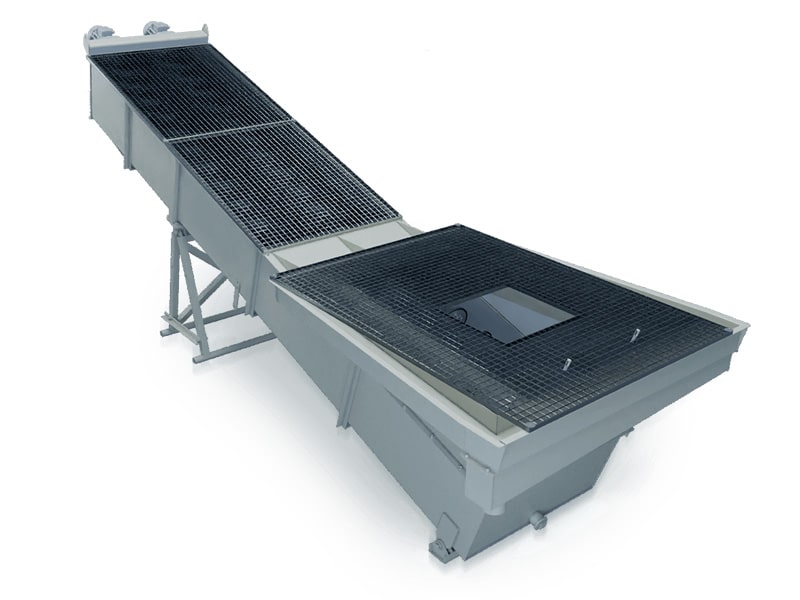

  • grau-fine-material-washers2
    Operational Advantages
    GRAU fine material washers have been engineered for harsh operating conditions. High-efficiency drives provide adjustable classification control and low power consumption, labyrinth seals continuously protect the bearings and quality screw paddles with rubber caps provide maximum abrasion resistance.
  • Why GRAU Fine Material Washers?
    GRAU is committed to helping our customers select the correct equipment kit for their application. All our products have been built to the highest level of reliability, performance, accuracy and consistency. Developed for easy maintenance, transport and installation, our Fine Material Washers provide a significantly increased service life with outstanding results in capacity and final product quality. Components are easy to access, which simplifies the maintenance process allowing easy access to wear parts which can be easily replaced with minimum downtime.

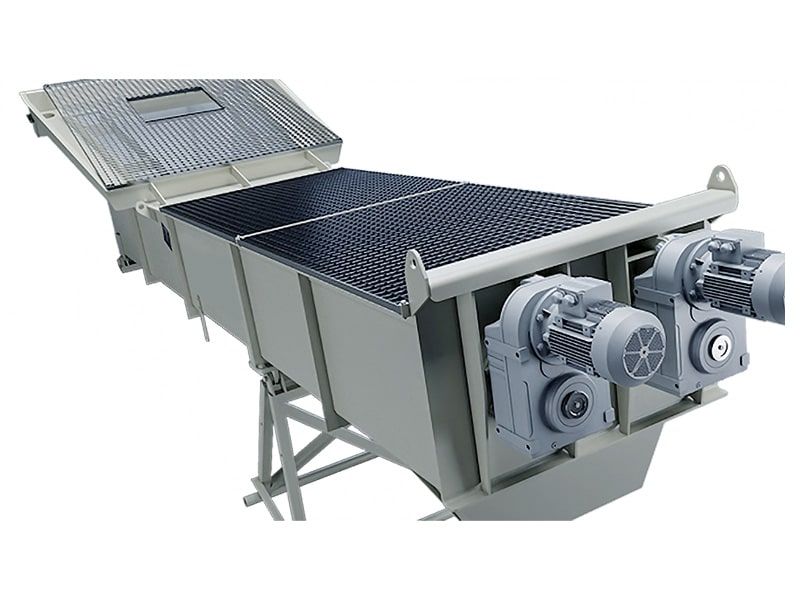

    grau-fine-material-washers3
PRODUCT HIGHLIGHTS
Solid Performance

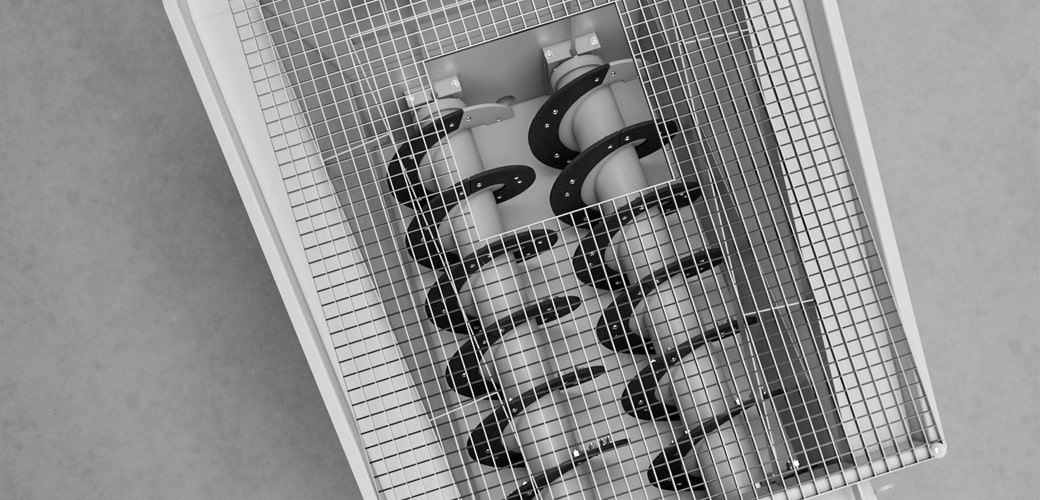

Strong helices are made of quality steel sheet material. Rubber paddles improve the wear resistance and provide easy maintenance and replacement.
Contact Us
GRAU Technic team is here to listen to your comments and suggestions.

We got you covered
Rest assured with GRAU's commitment to quality and customer satisfaction. With every GRAU product our customers get a comprehensive 12-month warranty against manufacturing defects. When you invest in a GRAU plant, you're not just purchasing equipment; you're investing in quality, knowledge, and experience. Our team of experts stands by our customers every step of the way, ensuring seamless operation and maximum productivity. Experience peace of mind knowing that GRAU is dedicated to delivering top-notch products and exceptional service. Our service team is always on hand to assist you, providing timely support and expertise whenever you need it. Choose GRAU for reliability, performance, and unparalleled customer service. Elevate your operations with confidence, backed by GRAU's unwavering Passion to do Better.
